Design Feature

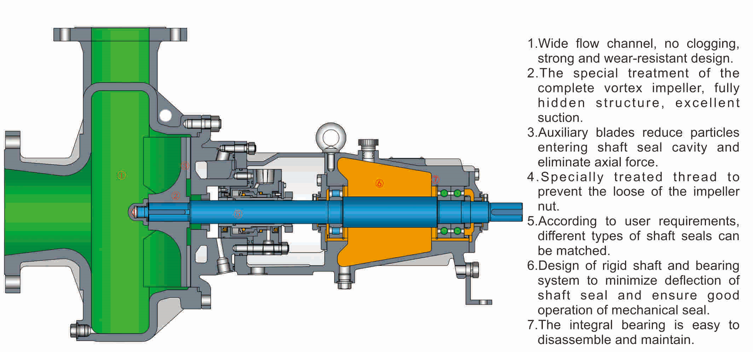

Single stage single suction rear door structure, supporting low vibration with the middle section of the maintenancefree long life diaphragm type coupling, pump rotor parts do not have to remove the connection flange and motor, easy maintenance.

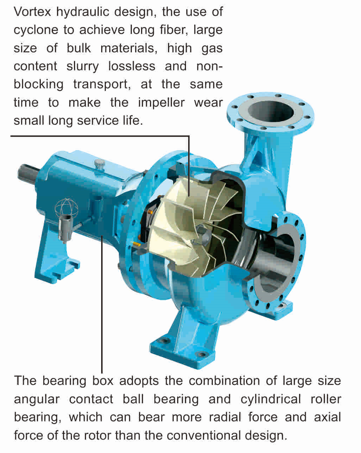

Vortex hydraulic design, the use of cyclone to achieve long fiber, large size of bulk materials, high gas content slurry lossless and nonblocking transport, at the same time to make the impeller wear small long service life.
The bearing box adopts the combination of large-size angular contact ball bearing and cylindrical roller bearing, which can bear more radial force and axial force of the rotor than the conventional design. At the same time, the mounting holes of the two bearings are processed in a single clamping process to ensure the coaxial accuracy of the two bearings.
From nodular iron to wear-resistant stainless steel, we can provide a variety of over-current material selection according to the needs, to meet the needs of different process equipment service life.

Performance parameters
Flow:15-2000m³/h
Head:10-100m
Working temperature: ~120℃
Pressure class:1.0MPa

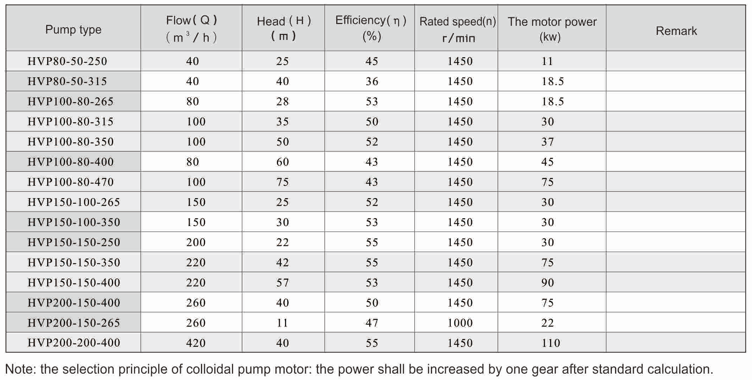

Table of HVP performance parameters table
